TELEFUNKEN/ TAB

MIC PREAMPS / COMPRESSORS / LIMITERS
THE NEXT GENERATION of authentic legendary
Vintage studio gear made in the 60’S:

Transistorized (Discrete) - following the 50’s &60’s

Tube technology (V72 / V76 / U73) Production Time :Late 60’s

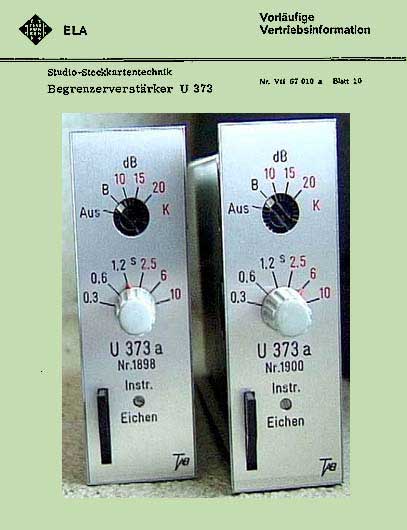

TAB / TELEFUNKEN Compressor/Limiter U373a

> sonic Wolves disguised in a sheepskin <

designed for the highest demands of German Broadcasters

and attached with a very high price tag at the time.

This time - the price tag is lower thanks to the ignorance of

the same Broadcasters who have moved on into bits (& pieces)

Analogue Compressor/ Limiter U373a

..also being used as the last part in the chain before going on air the compressor is followed by a combined limiter to guarantee

steady output level. The effect is sensational to the ear: After a basic input gain setting has been selected ... the input gain can be varied via the dynamics of performance of the vocalist, drummer, guitarist, etc. usually within 1-6 dB to loosen & densen the sound up to a total-upfront & IN-YOUR-FACE-FIREWORKSTM while keeping a fairly steady output level. The range of release time settings will add to the flexibility of apparent loudness-sustain-decay-roomambience.

A pair of U373a compressors/limiters used in a final mix or mastering lab

manages to achieve the apparent maximum loundness everybody is after by keeping psychoacoustic dynamics fully intact at the same time.

The U373a (size 4.5x1.5 inch) is driven by an external 24V Power Supply to be assembled in a rack
At this point we are offering the raw modules w. Siemens 31 pin connectors
& wiring instructions.
Price for Compressor/Limiter module per channel US$ 590.00
-----------------------------------------------------------------------------------

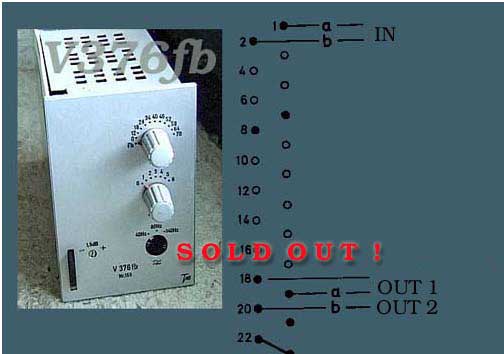

V376 Mic PREAMP with 70 dB of Gain in 1, 6,10 &12 dB steps.
Frequency roll off filters at 140/80 &40 Hz
One of the absolutely best mic preamps around and this for the last 30 years.

V376fb%2FFinal%2Fsold out%2Fwebs.jpg (28137 bytes)

The V376 mic preamp (size 4.5x3.0 inch) is driven by an external 24V Power Supply to be assembled in a rack ( supply via 3rd parties)
At this point we are offering the raw module w. Siemens 31 pin connectors
& wiring instructions.
Original Racks may be available by request.
Price for V376 Mic Preamp per channel US$ 600.00
